Description

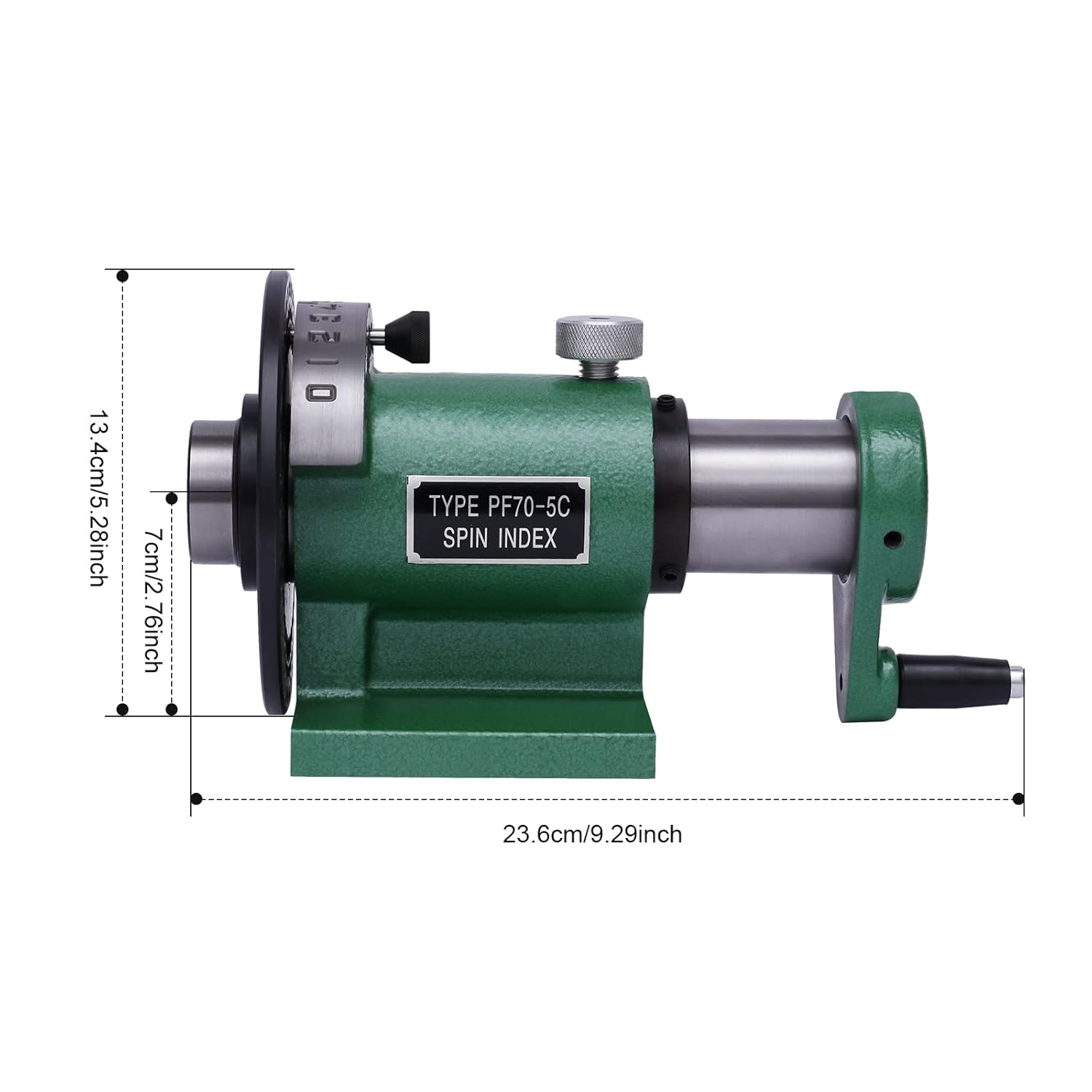

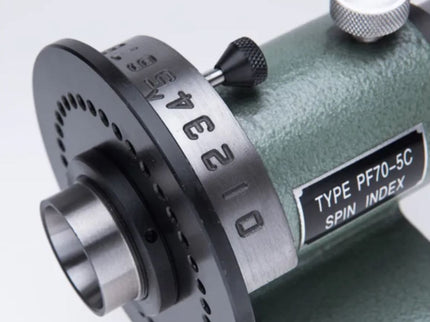

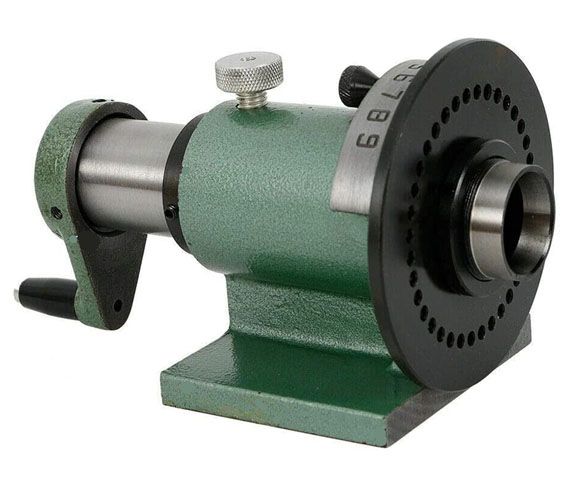

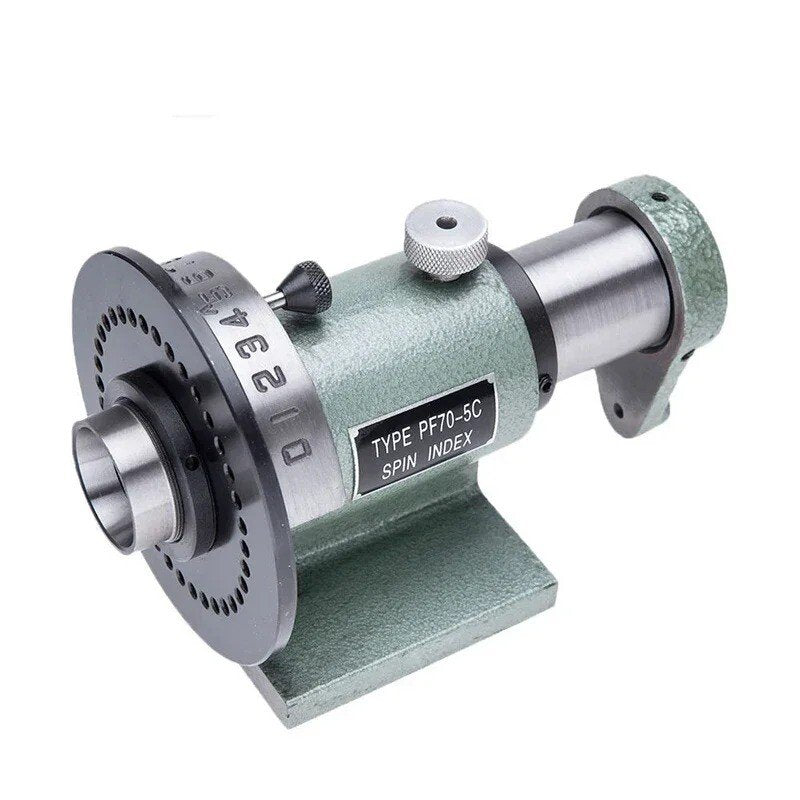

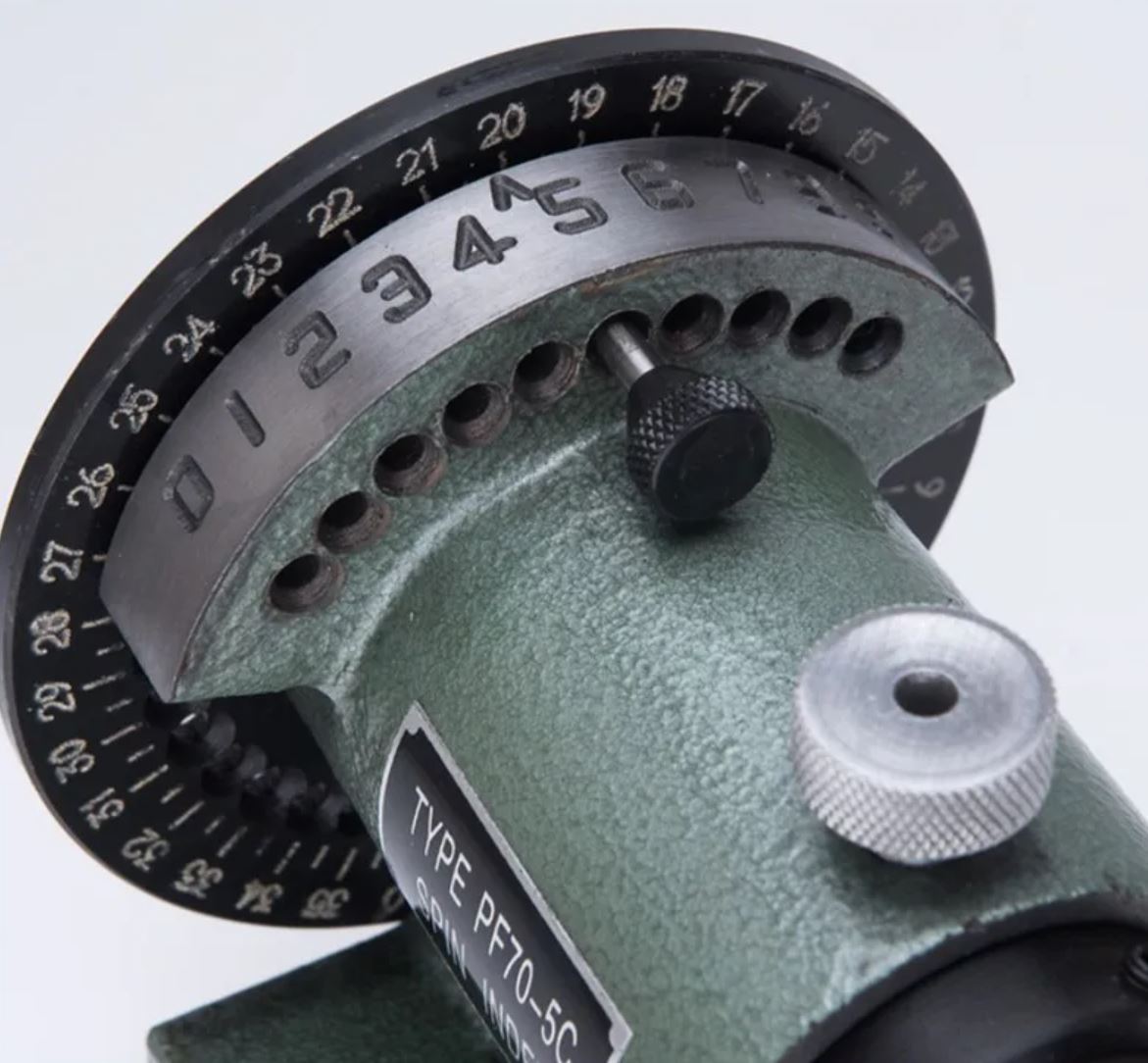

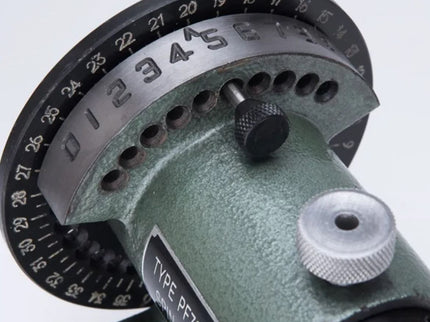

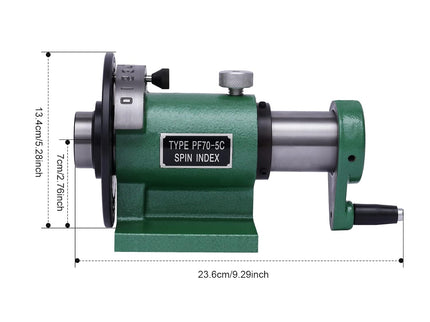

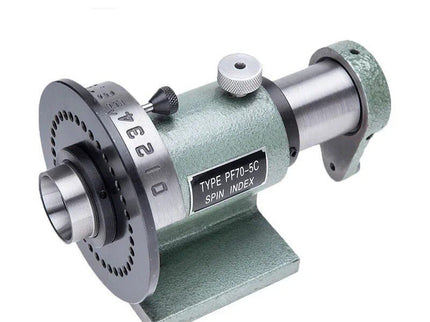

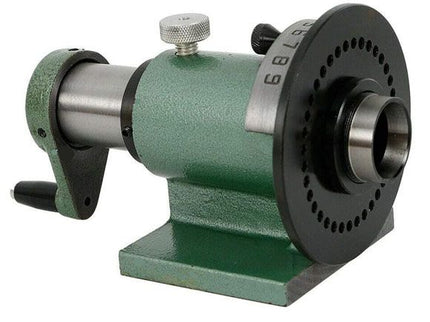

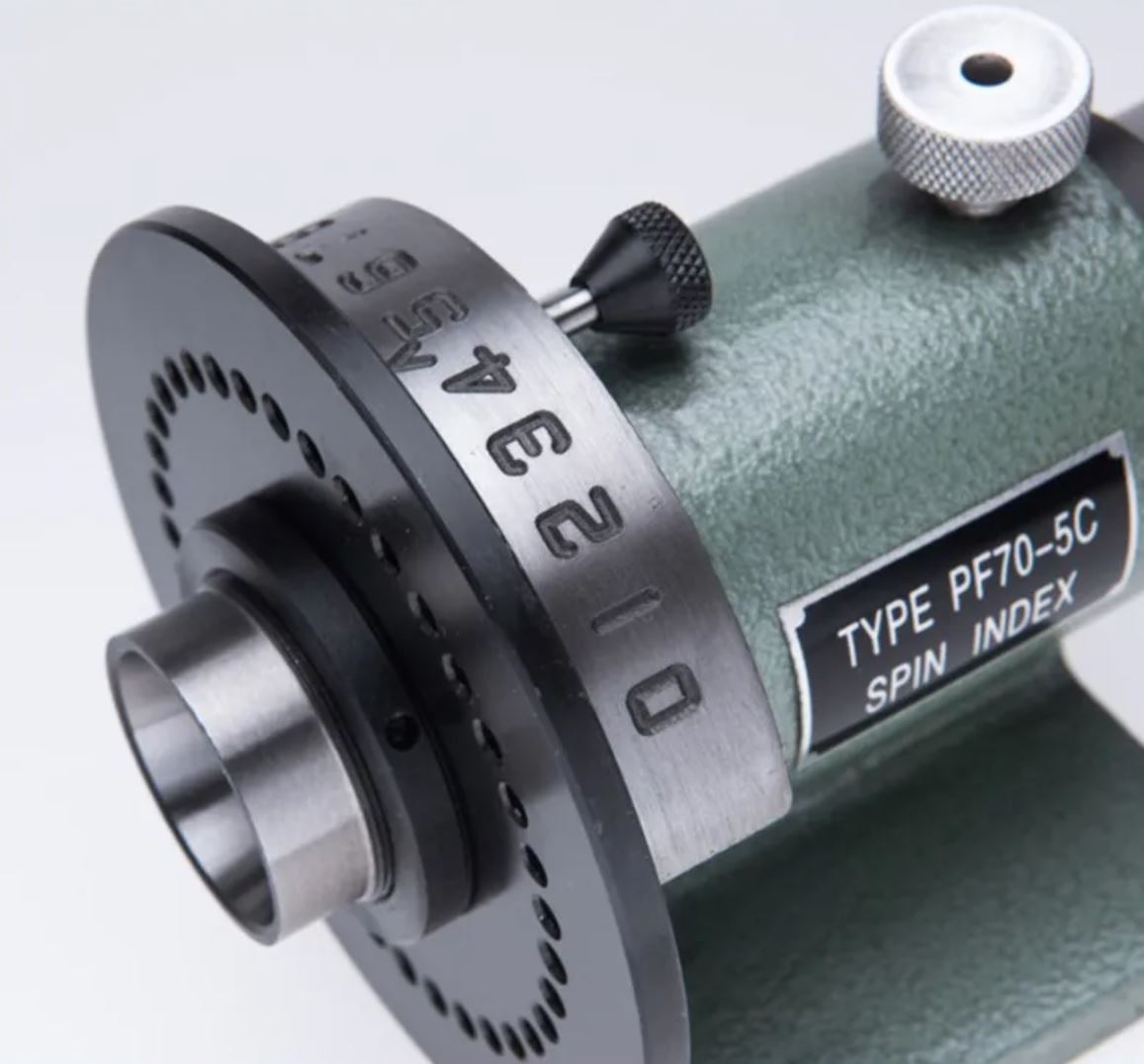

The PF70-5C indexing head fixture delivers precise angular positioning for drilling, grinding, and milling operations. Compatible with 2, 3, 4, or 5 inch chucks, it features a 5" diameter indexing plate with 36 holes graduated in 1° increments for repeatable accuracy to ±4 minutes. The parallel base (0.0005" tolerance) and 70mm centre height ensure stable setup on any machine. Dimensions: 236 x 110 x 134mm (LxWxH). Minimum indexing increment is 1 degree.

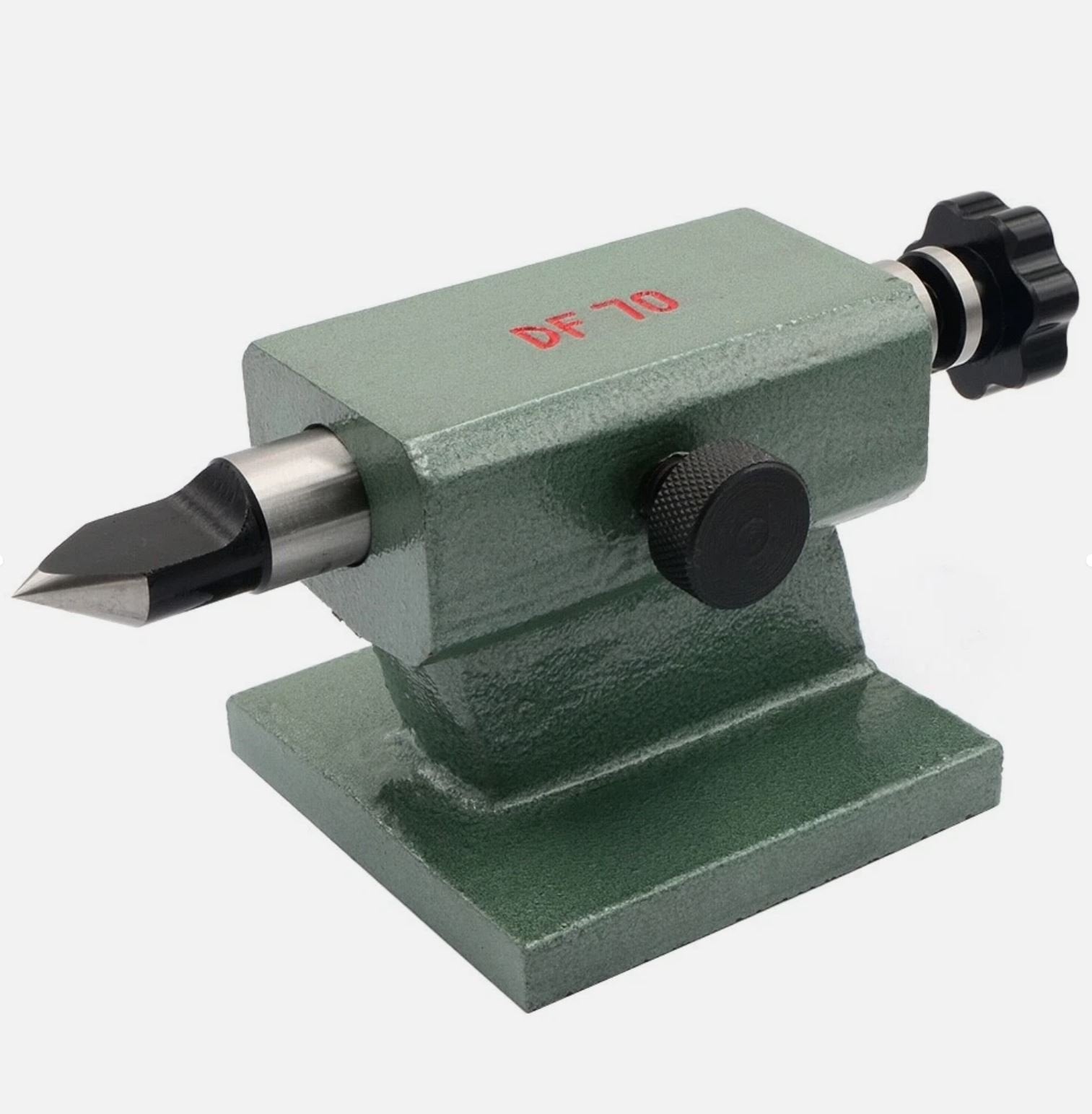

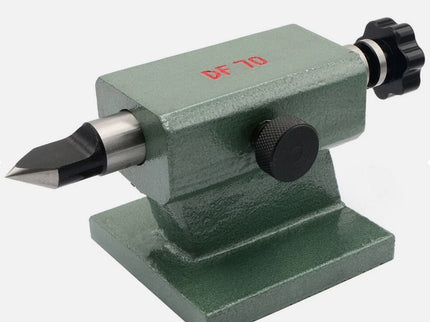

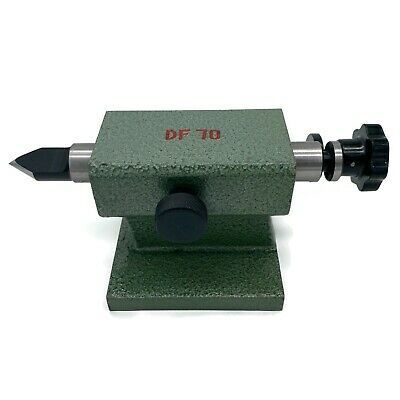

Pair with the matching DF70 tailstock for complete setup flexibility. The tailstock maintains the same 70mm centre height, offers 55mm sleeve travel, and mounts via a 100 x 100mm plate. Overall tailstock height is 88mm, perfectly complementing the fixture for balanced workholding on your lathe or mill.
5c Spin Index Fixture / Tailstock
$250.00
Description
The PF70-5C indexing head fixture delivers precise angular positioning for drilling, grinding, and milling operations. Compatible with 2, 3, 4, or 5 inch chucks, it features a 5" diameter indexing plate with 36 holes graduated in 1° increments for repeatable accuracy to ±4 minutes. The parallel base (0.0005" tolerance) and 70mm centre height ensure stable setup on any machine. Dimensions: 236 x 110 x 134mm (LxWxH). Minimum indexing increment is 1 degree.
Pair with the matching DF70 tailstock for complete setup flexibility. The tailstock maintains the same 70mm centre height, offers 55mm sleeve travel, and mounts via a 100 x 100mm plate. Overall tailstock height is 88mm, perfectly complementing the fixture for balanced workholding on your lathe or mill.
