Description
The Aluminum Profile Drilling Jig Guide makes drilling hole in the profile easy and perfectly accurate. It is compatible with 2020, 2040, 3030, 3060, 4040, 4080 profile series. The jig is made from a polished metal alloy.

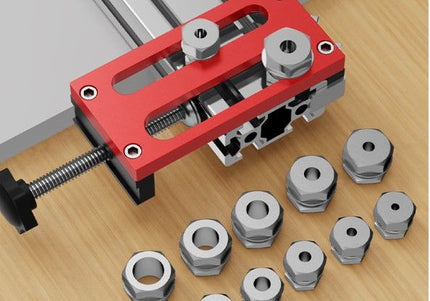

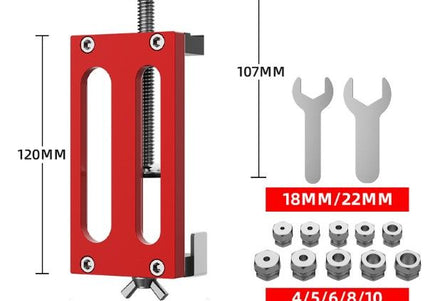

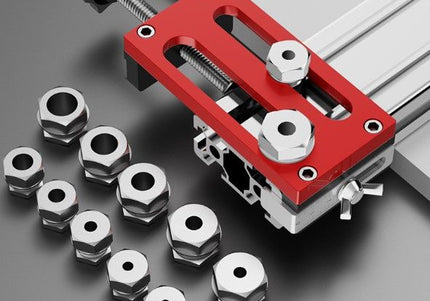

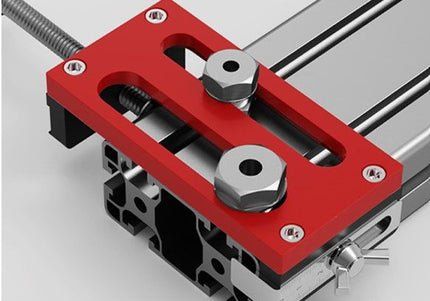

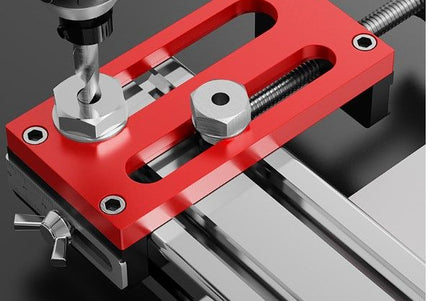

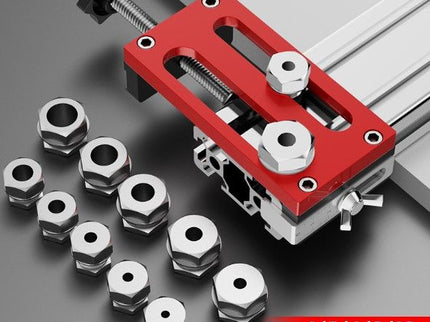

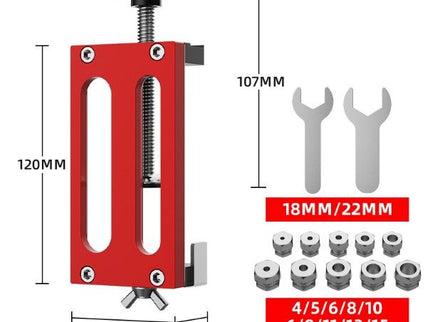

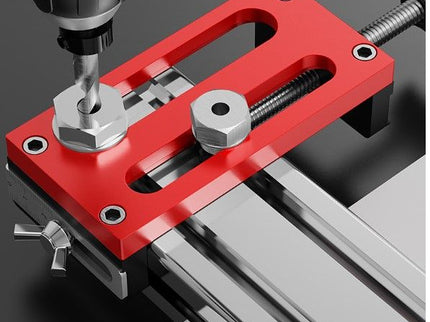

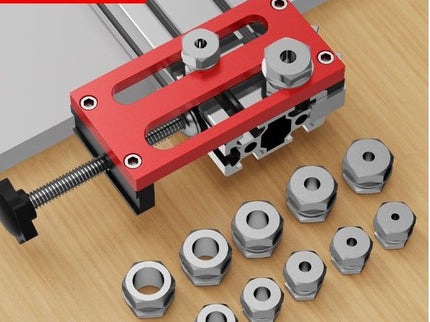

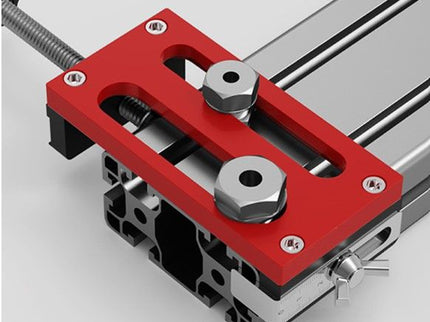

To use, simply clamp the jig onto your profile and put the relevant collet you want into the slot. There are a total of 10 aluminium collet sizes included: 4, 5, 6, 6, 8, 8, 10, 11, 13 and 15mm.

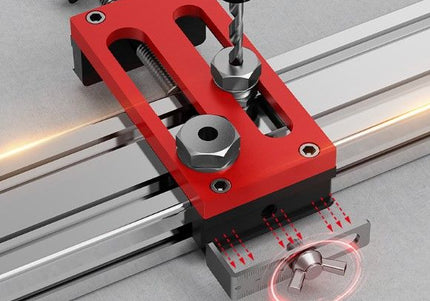

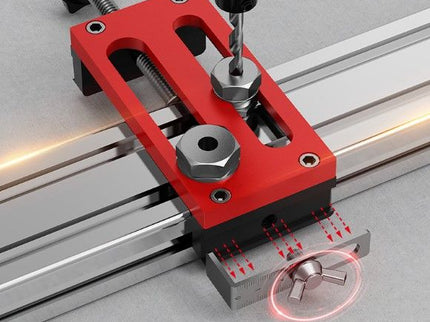

There is also a detactable end adjustment piece to allow accurate drilling for making L joins.
Aluminum Extrusion Drilling Jig for 20/30/40 Series
$150.00
Description
The Aluminum Profile Drilling Jig Guide makes drilling hole in the profile easy and perfectly accurate. It is compatible with 2020, 2040, 3030, 3060, 4040, 4080 profile series. The jig is made from a polished metal alloy.
To use, simply clamp the jig onto your profile and put the relevant collet you want into the slot. There are a total of 10 aluminium collet sizes included: 4, 5, 6, 6, 8, 8, 10, 11, 13 and 15mm.
There is also a detactable end adjustment piece to allow accurate drilling for making L joins.
