Description

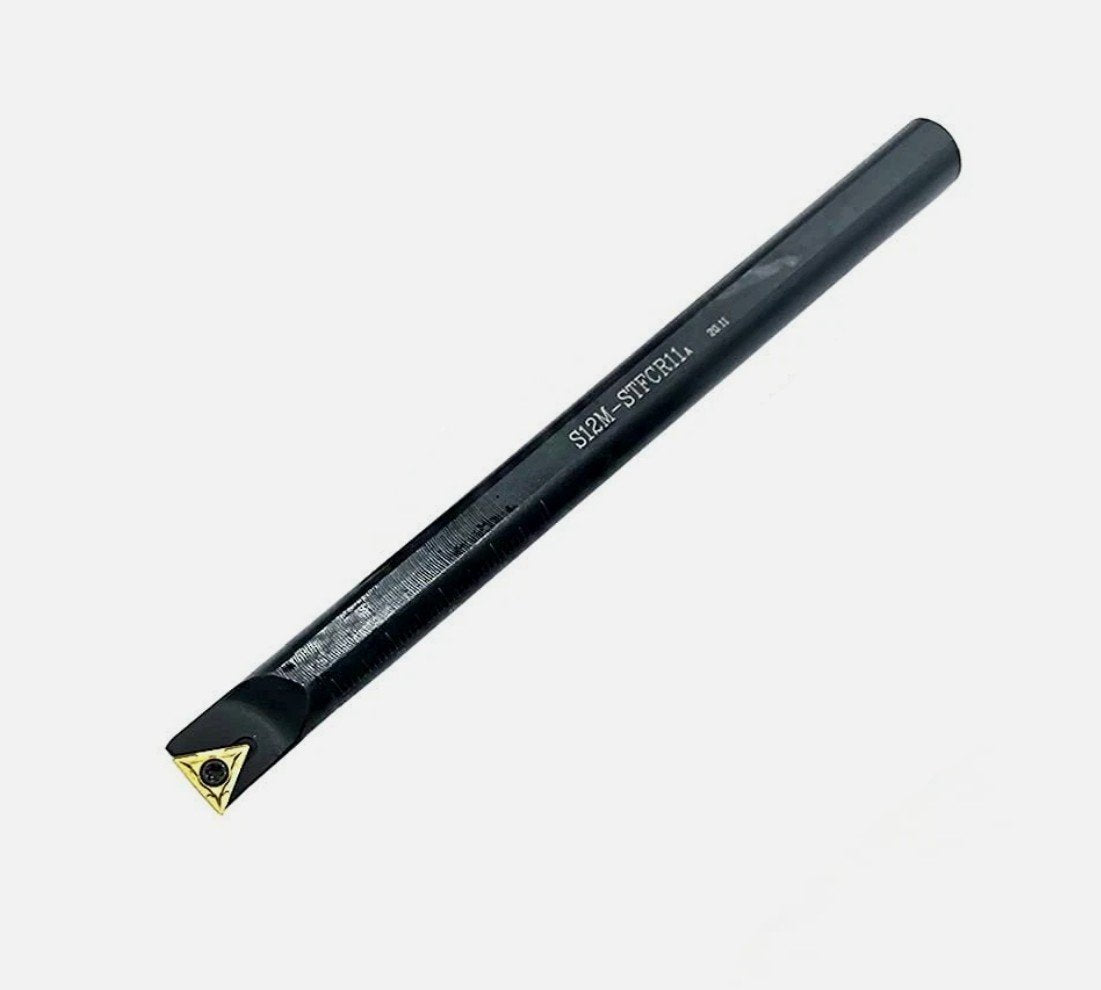

These Boring Bars suit the Triangle shaped carbide tip which are highly versatile and best used for general turning, facing, profiling, and boring operations where versatility and clearance are needed, rather than maximum edge strength.

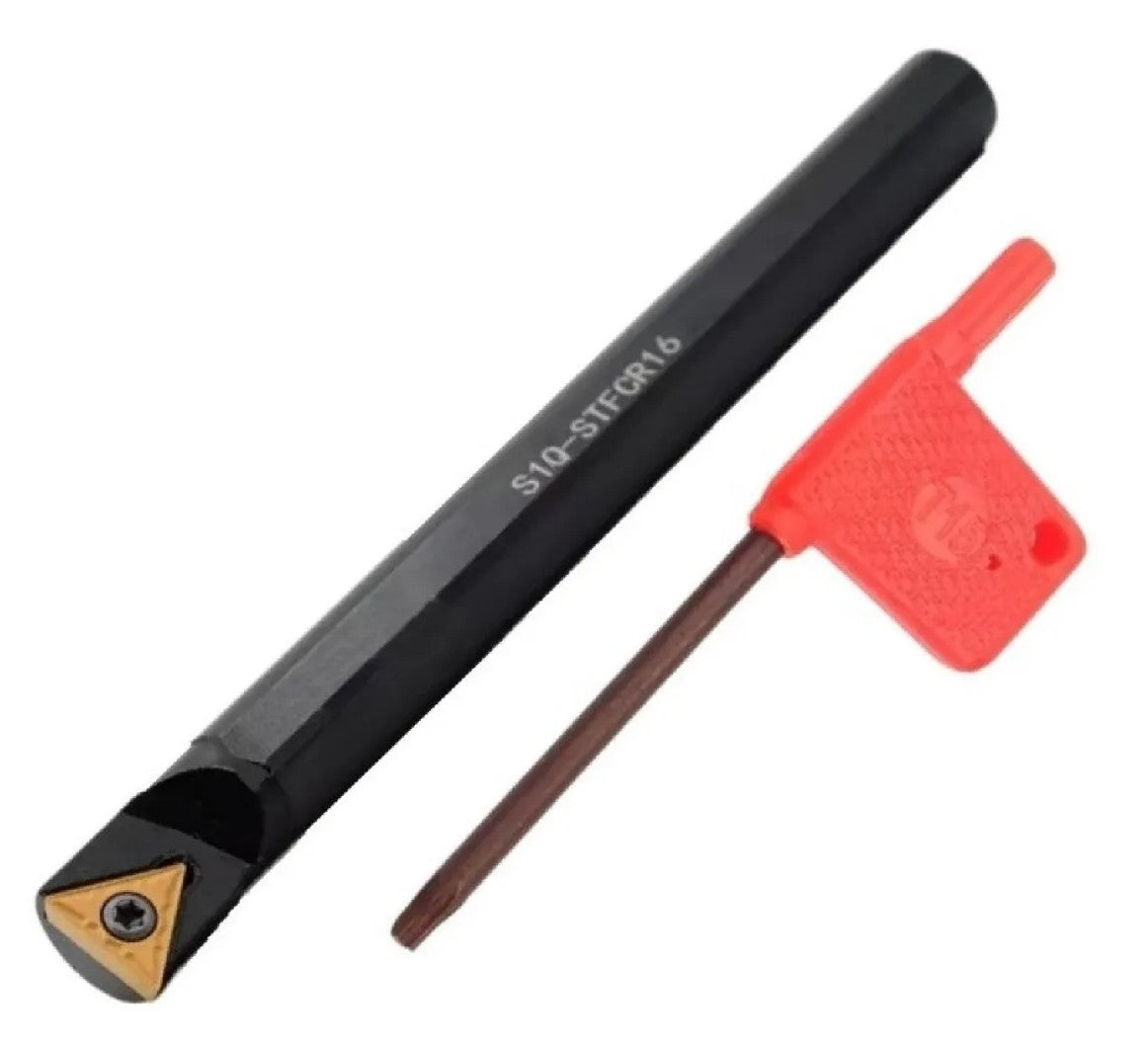

All holders already come with 1 carbide tip, screw and key for turning right away.
| ITEM NO. | Holder Size | Insert | Screw/Key |
| D08STUPR09 | D8x100mm | TCMT090202 | M2.5/T-8 |
| D10STUPR09 | D10x120mm | TCMT090202 | M2.5/T-8 |
| S12STFCR11 | D12x150mm | TPMT110304 | M3/T-10 |
| D16STFCR11 | D16x170mm | TPMT110304 | M3/T-10 |
| D20STFPR11 | D20x200mm | TPMT110304 | M3/T-10 |

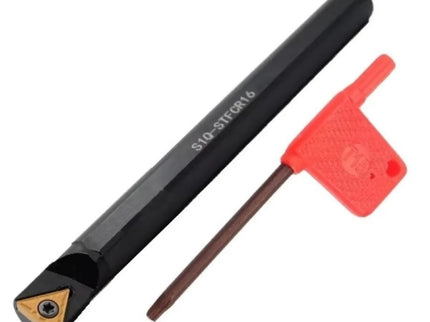

Boring Bar (Screw Lock) triangle tip
$60.00
Description
These Boring Bars suit the Triangle shaped carbide tip which are highly versatile and best used for general turning, facing, profiling, and boring operations where versatility and clearance are needed, rather than maximum edge strength.
All holders already come with 1 carbide tip, screw and key for turning right away.
| ITEM NO. | Holder Size | Insert | Screw/Key |
| D08STUPR09 | D8x100mm | TCMT090202 | M2.5/T-8 |
| D10STUPR09 | D10x120mm | TCMT090202 | M2.5/T-8 |
| S12STFCR11 | D12x150mm | TPMT110304 | M3/T-10 |
| D16STFCR11 | D16x170mm | TPMT110304 | M3/T-10 |
| D20STFPR11 | D20x200mm | TPMT110304 | M3/T-10 |
