Description

Features

• Jig measures 7" wide by 6" tall.
• Designed for the most common boring widths of:
• 96mm, 3", 3-3/4" 3-1/2", 2-1/2" and 4"

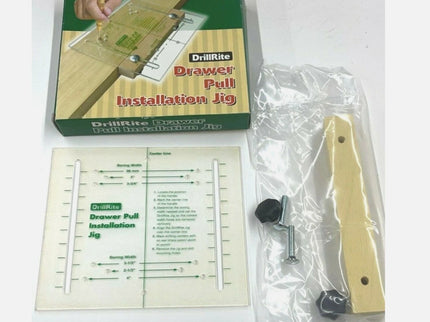

The Drawer Pull Installation Jig is the easy and accurate way to install knobs and handles on your drawers. With adjustable guides on a clear lightweight frame, its very easy to use.

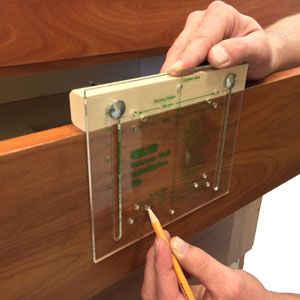

1. Locate the position of the handles, mark the centre line.

2. Determine the boring width needed and set the jig so the holes are centred vertically.

3. Mark drilling centres with an awl or pencil point.

4. Remove jig and drill the holes.
