Description

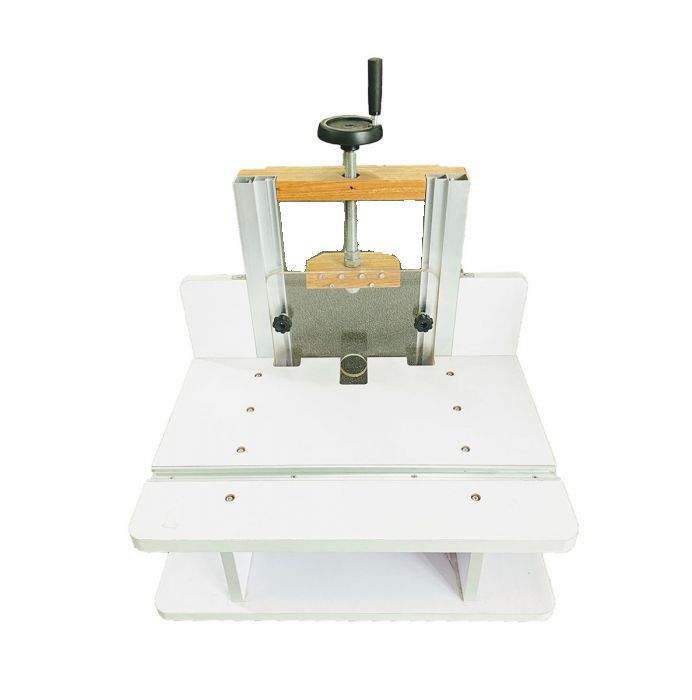

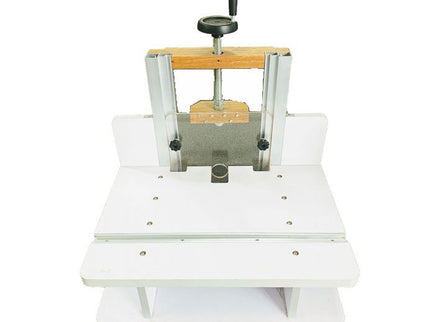

This is one of the most unique router tables yet it's also one of the handiest and versatile in the shop. A horizontally mounted router that can be finely adjusted allows the woodworker to use vertical raised panel bits with ease and safety.
The large table surface supports the largest doors and with a few shop made jigs, it's also the perfect mortising machine.
- Features micro adjustable bit height adjustments. 1/16" per turn allows for very precise adjustments: (1/4 turn = 1/64", 1/2 turn = 1/32", 3/4 turn = 3/64").
- The table is 24" wide x 20" deep x 25" height with a sturdy 3/4" thick MDF core, durable melamine surface and polyethylene plastic edges. Now features a full extruded aluminum support structure.
- 3/4" thick MDF core with melamine surface extension fences, on both sides of the router plate give maximum support to long stock.

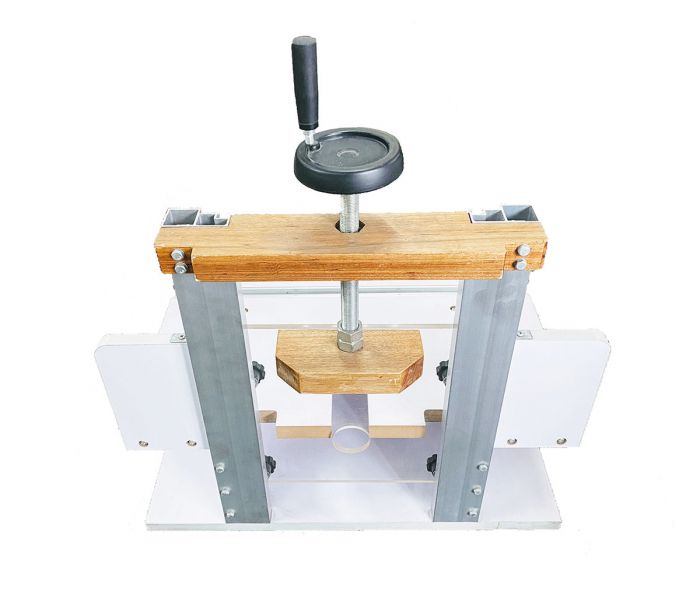

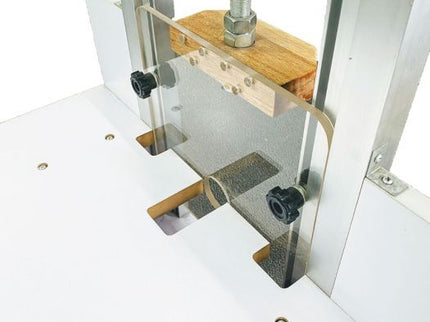

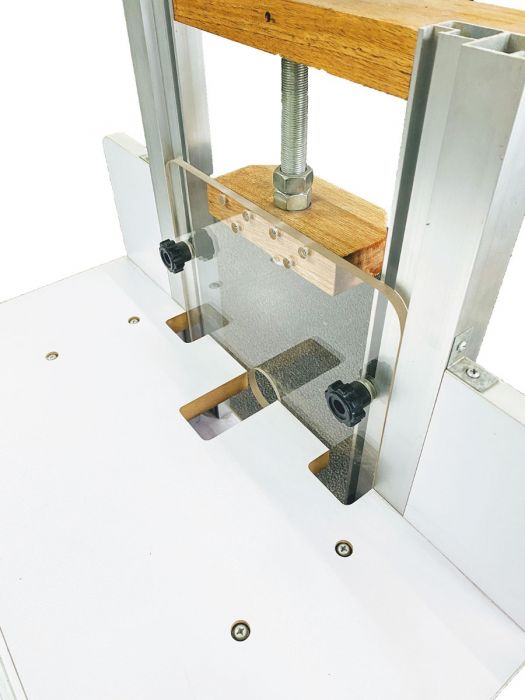

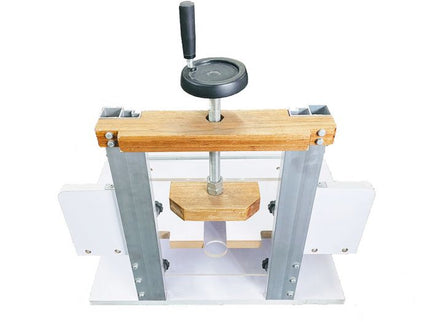

- The 3/8" thick, 11-3/4" x 11-1/2" router plate is held in routing position by sturdy aluminum extrusions, along with two locking knobs which safely secure the sliding router plate in position.
- Miter T-track fits a standard 3/8" x 3/4" miter bar or safety bar.
Note: The Horizontal Router Table cannot be used to make cathedral doors.

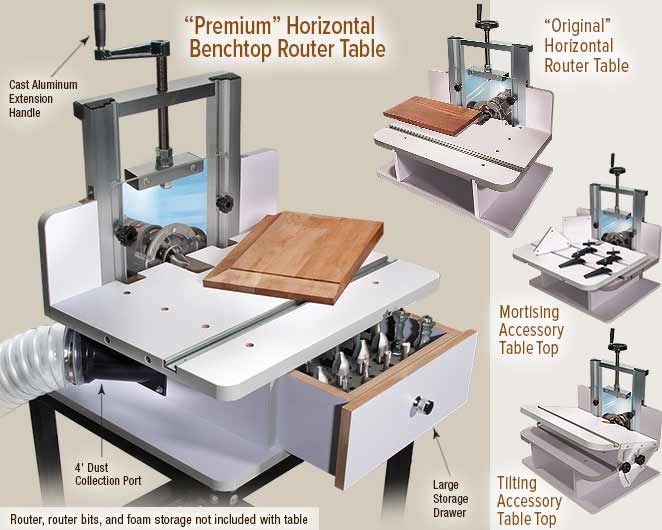

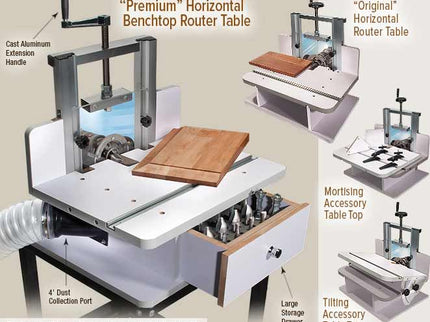

The Premium Upgrade Kit includes: 1. Cast Aluminium Extension Handle 2. Dust Collection Adaptor 3. Large Storage Drawer, improving your routing experience with the Horizontal Table.
- The Cast-Aluminum Extension Handle makes height adjustments even easier. By adding this extra strong and extra-long handle, the force required to make precision adjustments is much Less than the original stock handwheel.
- The premium upgrade kit Includes everything you need to enclose the base of your horizontal. table and make it dust collection ready. A 2-1/2" dust collection adaptor mounts to the side of the table. A back panel encloses the dust collection area and still allows for all height adjustments to be made.
- A Large Storage Drawer has been added to the front of the table, with enough room to hold a large selection of router bits and router accessories.
Horizontal Router Table
$240.00
Description
This is one of the most unique router tables yet it's also one of the handiest and versatile in the shop. A horizontally mounted router that can be finely adjusted allows the woodworker to use vertical raised panel bits with ease and safety.
The large table surface supports the largest doors and with a few shop made jigs, it's also the perfect mortising machine.
- Features micro adjustable bit height adjustments. 1/16" per turn allows for very precise adjustments: (1/4 turn = 1/64", 1/2 turn = 1/32", 3/4 turn = 3/64").
- The table is 24" wide x 20" deep x 25" height with a sturdy 3/4" thick MDF core, durable melamine surface and polyethylene plastic edges. Now features a full extruded aluminum support structure.
- 3/4" thick MDF core with melamine surface extension fences, on both sides of the router plate give maximum support to long stock.
- The 3/8" thick, 11-3/4" x 11-1/2" router plate is held in routing position by sturdy aluminum extrusions, along with two locking knobs which safely secure the sliding router plate in position.
- Miter T-track fits a standard 3/8" x 3/4" miter bar or safety bar.
Note: The Horizontal Router Table cannot be used to make cathedral doors.
The Premium Upgrade Kit includes: 1. Cast Aluminium Extension Handle 2. Dust Collection Adaptor 3. Large Storage Drawer, improving your routing experience with the Horizontal Table.
- The Cast-Aluminum Extension Handle makes height adjustments even easier. By adding this extra strong and extra-long handle, the force required to make precision adjustments is much Less than the original stock handwheel.
- The premium upgrade kit Includes everything you need to enclose the base of your horizontal. table and make it dust collection ready. A 2-1/2" dust collection adaptor mounts to the side of the table. A back panel encloses the dust collection area and still allows for all height adjustments to be made.
- A Large Storage Drawer has been added to the front of the table, with enough room to hold a large selection of router bits and router accessories.
