Description

These high speed steel Keyway Broaches have excellent durability and heat resistance. Quality precision with smooth teeth for accuracy and minimal deviation.

Includes relevant shim.

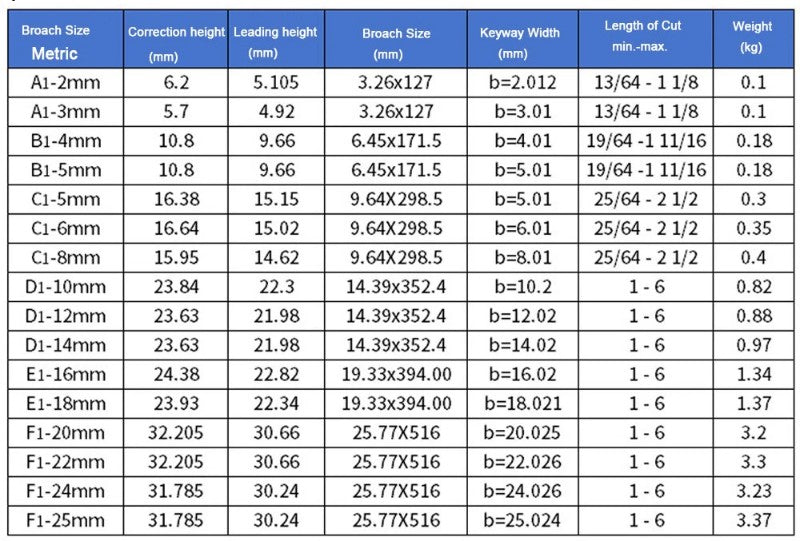

3mm A:  3mm Width x 125mm Overall x 3mm Body Width,

4mm B:  3mm Width x 172mm Overall x 5mm Body Width,

5mm B:  5mm Width x 172mm Overall x 5mm Body Width,

6mm C:  6mm Width x 298mm Overall x 9.8mm Body Width,

8mm C:  8mm Width x 298mm Overall x 9.8mm Body Width,

10mm C:  10mm Width x 350mm Overall x 14.5mm Body Width,

12mm C:  12mm Width x 350mm Overall x 14.5mm Body Width,
