Description
The L shape / T shape connector plate is an easy to install alternative to join the aluminium profiles perpendicularly.
With high connecting strength, it can be used without drilling a hole into the extrusions. The plates are made of carbon steel and chrome plated.
| Profile | A | B | C | D | E |
| 2020 | 60 | 60 | 16 | 6 | 2 |
| 3030 | 85 | 85 | 26.5 | 6.2 | 2.5 |
| 4040 | 110 | 110 | 36 | 9 | 3 |

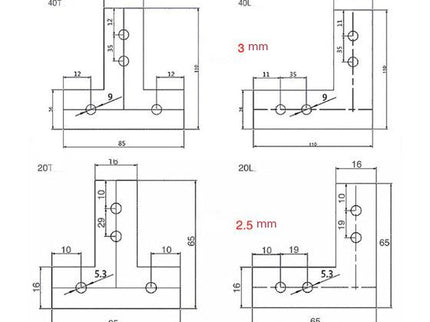

Measurements in mm, refer to image 3 for sizing.
L Shape / T Shape Connector Plate for Aluminum Extrusions
$3.00
Description
The L shape / T shape connector plate is an easy to install alternative to join the aluminium profiles perpendicularly.
With high connecting strength, it can be used without drilling a hole into the extrusions. The plates are made of carbon steel and chrome plated.
| Profile | A | B | C | D | E |
| 2020 | 60 | 60 | 16 | 6 | 2 |
| 3030 | 85 | 85 | 26.5 | 6.2 | 2.5 |
| 4040 | 110 | 110 | 36 | 9 | 3 |
Measurements in mm, refer to image 3 for sizing.
