Description

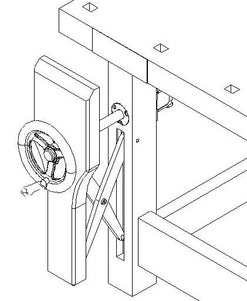

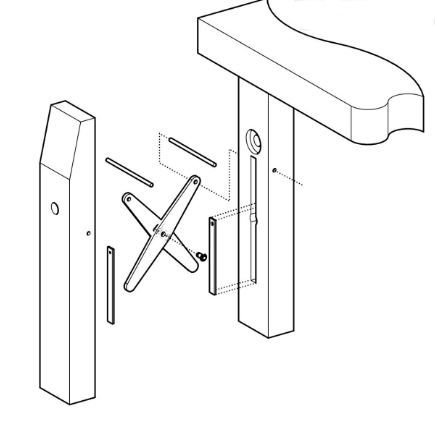

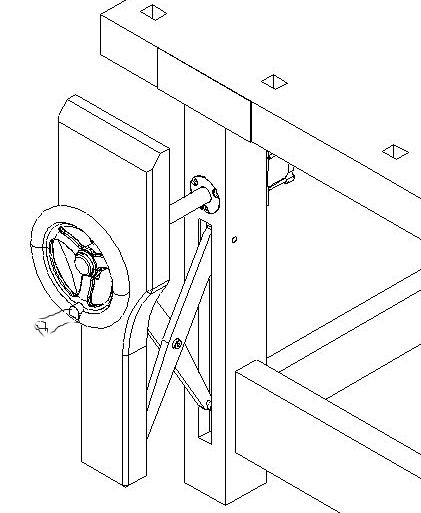

This Leg Vice Hardware Kit comes with everything you need to construct a DIY leg vice into your workbench.

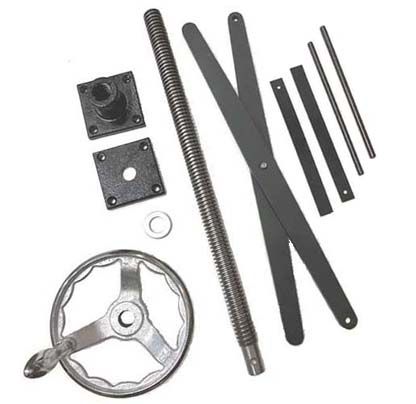

Featuring 170mm / 190mm cast iron hand wheel designed for smooth turning, 26mm acme thread with 5tpi pitch vise screw 500mm long length, square nut and hardware.

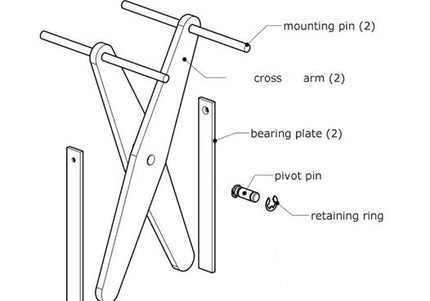

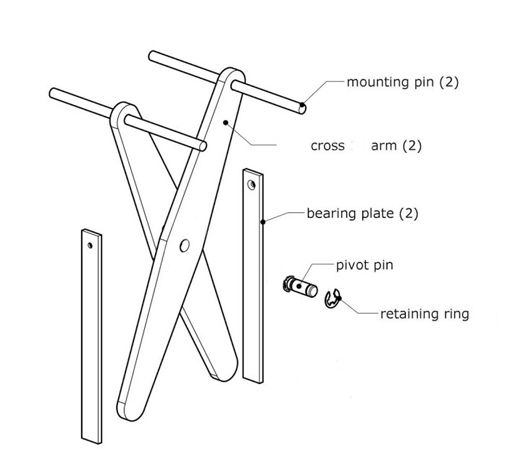

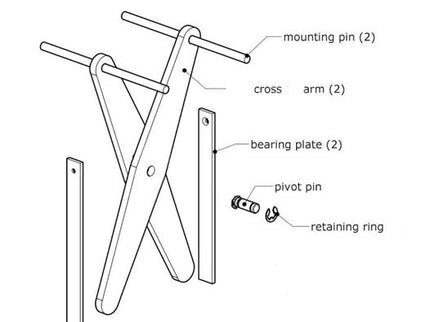

Also comes with a 460mm cross metal bar to keep the vice jaw parallel moving. Each bar of the cross bar is 8 x 32 x 460mm.
Difference between the two variants is the cast iron hand wheel size (170mm v 190mm Diameter).
Setup guide available: Here
Leg Vice Hardware Kit
$170.00
Description
This Leg Vice Hardware Kit comes with everything you need to construct a DIY leg vice into your workbench.
Featuring 170mm / 190mm cast iron hand wheel designed for smooth turning, 26mm acme thread with 5tpi pitch vise screw 500mm long length, square nut and hardware.
Also comes with a 460mm cross metal bar to keep the vice jaw parallel moving. Each bar of the cross bar is 8 x 32 x 460mm.
Difference between the two variants is the cast iron hand wheel size (170mm v 190mm Diameter).
Setup guide available: Here
