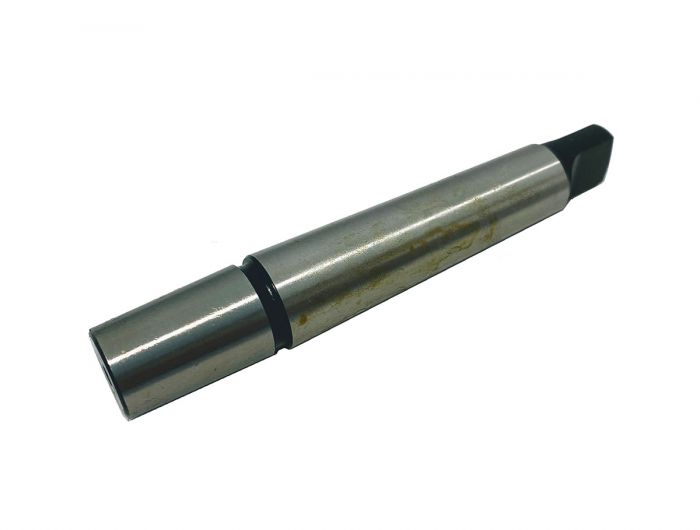

Morse Taper Shank Chuck Arbour With Tang

Description

The Morse Taper Arbour is designed to be used with most matching drill chucks to mount on lathes, drills and milling machines with a morse taper.

Match the chuck taper (e.g. B12) to the Morse Taper size you want (e.g. MT.2).

ITEM NO.	Morse Taper	Chuck Taper	D1 (mm)	D2 (mm)	D3 (mm)	D4 (mm)	L1 (mm)	L2 (mm)
AT1B10	MT.1	B10	12.065	9.70	10.754	9.40	65.50	14.50
AT1B12	MT.1	B12	12.065	9.70	12.065	11.10	65.50	18.50
AT1B16	MT.1	B16	12.065	9.70	15.733	14.50	65.50	24
AT2B10	MT.2	B10	17.780	14.90	10.754	9.40	80	14.50
AT2B12	MT.2	B12	17.780	14.90	12.065	11.10	80	18.50
AT2B16	MT.2	B16	17.780	14.90	20 .599	14.50	80	24
AT2B18	MT.2	B18	17.780	14.90	15.733	16.20	80	32
AT3B18	MT.3	B18	23.825	20.20	15.733	16.20	99	32
AT3B22	MT.3	B22	23.825	20.20	21.793	19.80	99	40.50
AT1JT6	MT.1	JT6	12.065	9.70	17.170	15.582	65.50	25.40
AT2JT6	MT.2	JT6	17.780	14.90	17.170	15.582	80	25.40
AT2JT33	MT.2	JT33	17.780	14.90	15.850	15.237	80	25.40
AT3JT3	MT.3	JT3	23.825	20.20	20.599	18.951	99	30.956
