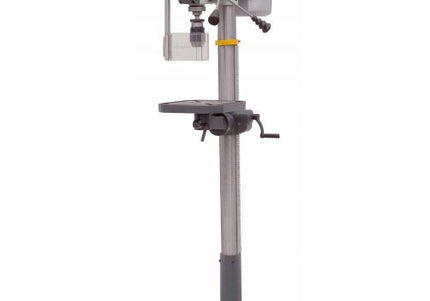

Optimum B25 Heavy Duty Pedestal Drill 0.75HP / 550W
$399.00$699.00
Share with your friends
Share WhatsApp
Deel
Messenger Email
Description
PRODUCT DESCRIPTION
- Guaranteed concentricity precision less than 0.03 mm measured in the drilling spindle sleeve
- Spindle with precision ball bearings
- Quantum high-grade quick-action drill chuck with concentricity precision less than 0.09 mm supplied as standard (from B 14 onwards)
- Smoother running due to aluminum pulleys with ground six-tooth dog (from B 14 onwards)
- Better power transmission due to the quality driving V-belt
- Long, ergonomically designed lever arm handles with softgrip for nonskid working
- Drill depth stop
- Precision-ground work table with transversally running T-slots, swivelling from -45° to +45° with 360° rotatability
- Solid, heavy duty base plate with T-slots, heavily ribbed at the backside
- T-slots for holding a vice supplied as standard (from B 14 onwards)
- 400 Volt models additional with right-left-hand rotation
- Powerful, smooth-running electric motors (from B 14 onwards)
- Proven quality
| Model |
optimum / toptech B 25 |
| Drilling capacity in steel (max.) |
20 mm |
| Working range |
170 mm |
| Distance spindle / table (max.) |
760 mm |
| Spindle holding fixture |
MT 3 |
| Spindle speeds |
210 - 2220 rpm |
| Number of steps |
12 steps |
| Sleeve travel |
80 mm |
| Upright diameter |
70 mm |
| Table size (L x W) |
275 x 275 mm |
| T-slot size |
14 mm |
| Drilling table swivel |
+ / - 45° |
| Motor power 50 hz |
550 W / 0.75HP |
| Dimensions (L x W x H) |
690 x 390 x 1570 mm |
| Net weight |
63 kg |
