Description
The Out-facing holder is one of the most dependable turning tools. With a dependable screw clamping system, this tool holder is designed to enhance performance and stability during machining operations.

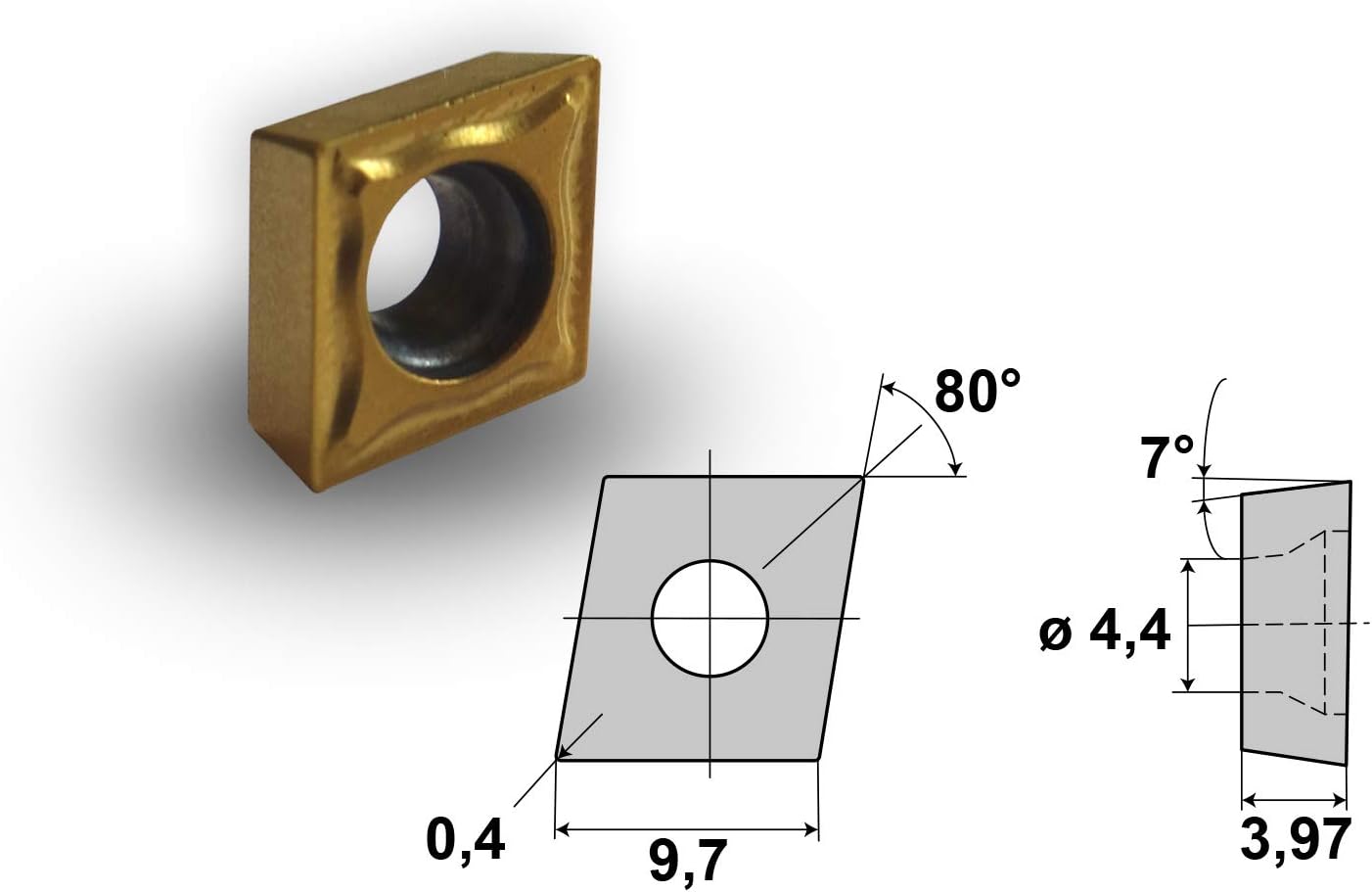

The Wide Diamond Carbide Tip with 80 degree angle is highly versatile with a strong cutting edge and good for general turning, facing, and profiling; offers 8 usable edges but needs careful chip control in boring.

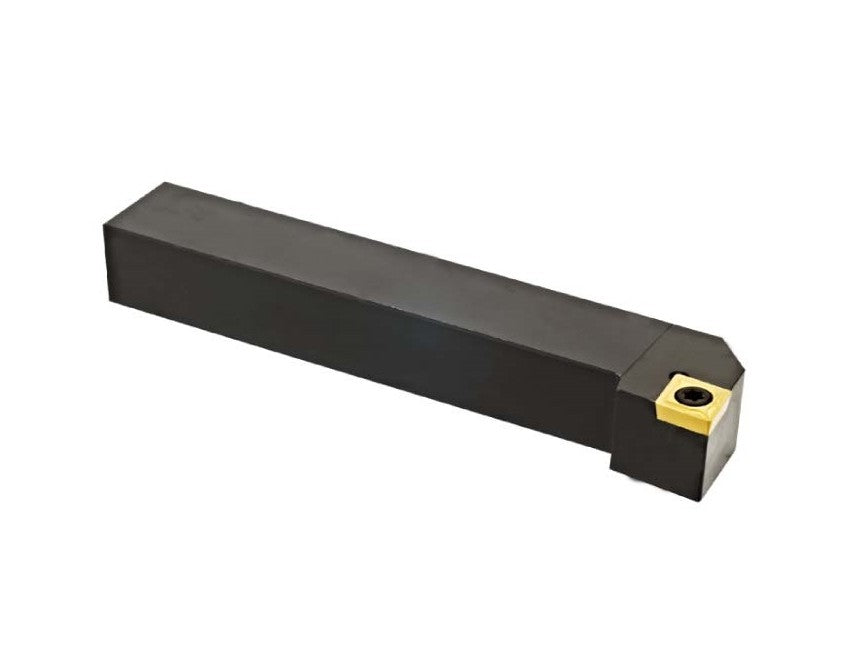

Available in both left hand and right hand variants. All holders already come with 1 carbide tip, screw and key for turning right away.
| ITEM NO. | Size of Holder | Insert | Screw / Key |

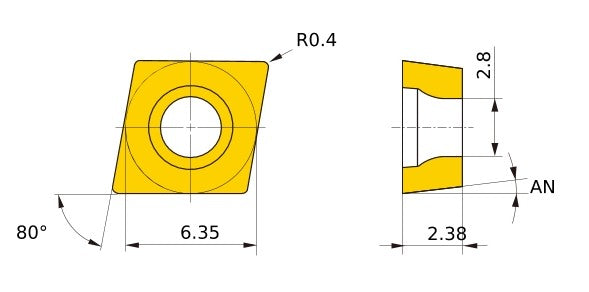

| SCLCR1010H06 | 10 x 10 x 100mm | CCMT0602 | CS30 / T-8 |
| SCLCL1010H06 | 10 x 10 x 100mm | CCMT0602 | CS30 / T-8 |

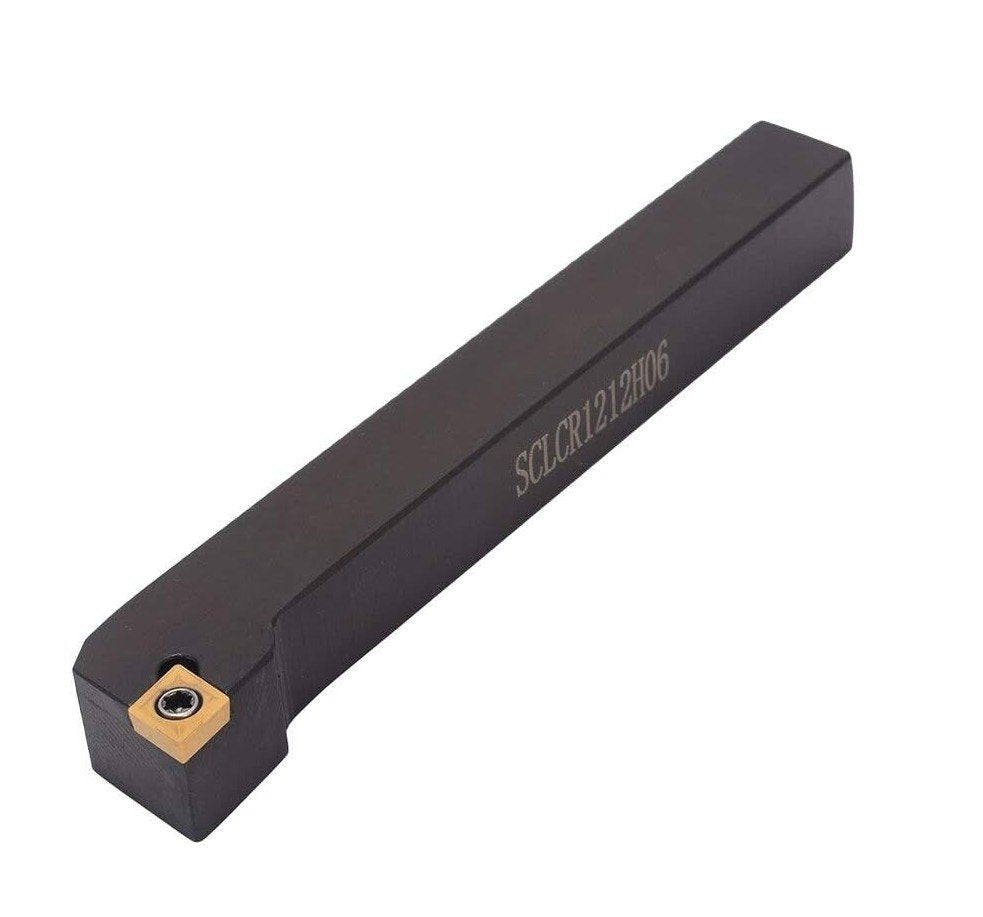

| SCLCR1212H09 | 12 x 12 x 100mm | CCMT09T3 | CS35 / T-15 |
| SCLCL1212H09 | 12 x 12 x 100mm | CCMT09T3 | CS35 / T-15 |
| SCLCR1616H09 | 16 x 16 x 100mm | CCMT09T3 | CS35 / T-15 |
| SCLCL1616H09 | 16 x 16 x 100mm | CCMT09T3 | CS35 / T-15 |

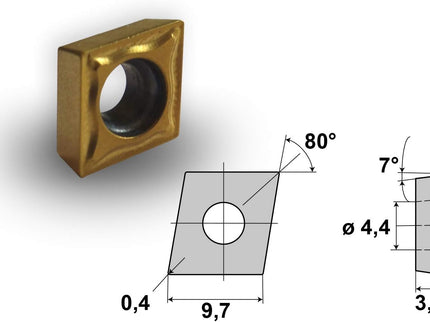

Out-Facing (Screw Lock) wide diamond tip
$48.00
Description
The Out-facing holder is one of the most dependable turning tools. With a dependable screw clamping system, this tool holder is designed to enhance performance and stability during machining operations.
The Wide Diamond Carbide Tip with 80 degree angle is highly versatile with a strong cutting edge and good for general turning, facing, and profiling; offers 8 usable edges but needs careful chip control in boring.
Available in both left hand and right hand variants. All holders already come with 1 carbide tip, screw and key for turning right away.
| ITEM NO. | Size of Holder | Insert | Screw / Key |
| SCLCR1010H06 | 10 x 10 x 100mm | CCMT0602 | CS30 / T-8 |
| SCLCL1010H06 | 10 x 10 x 100mm | CCMT0602 | CS30 / T-8 |
| SCLCR1212H09 | 12 x 12 x 100mm | CCMT09T3 | CS35 / T-15 |
| SCLCL1212H09 | 12 x 12 x 100mm | CCMT09T3 | CS35 / T-15 |
| SCLCR1616H09 | 16 x 16 x 100mm | CCMT09T3 | CS35 / T-15 |
| SCLCL1616H09 | 16 x 16 x 100mm | CCMT09T3 | CS35 / T-15 |
