Description
This precision Miter Gauge improves accuracy and safety when cross cutting or mitering. The slide bar has a locking washer that fits snugly into an aluminum track with a matching groove.
The solid steel protractor head features positives stops at 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90° both left and right. 13 pre-set common angles in total.
The bar is 450mm long with a removable locking washer making it usable with any standard 19 x 9.5mm (3/4" x 3/8") Miter Track. Three spring loaded ball bearings keep the bar snug in the track allowing the fence to run true. The retaining rings on the end also allows smooth movement along the track.
Recommended for use on the T28 or T30 Mitre Track.
Note: Fence not included but fully compatible with the Heavy Duty or Standard Mitre T-Fence for Table Saw / Router Table.

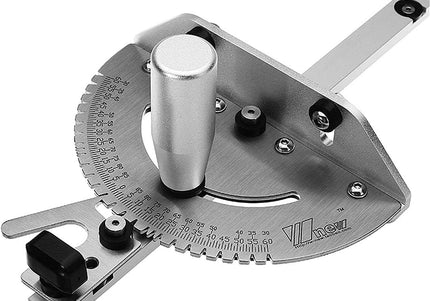

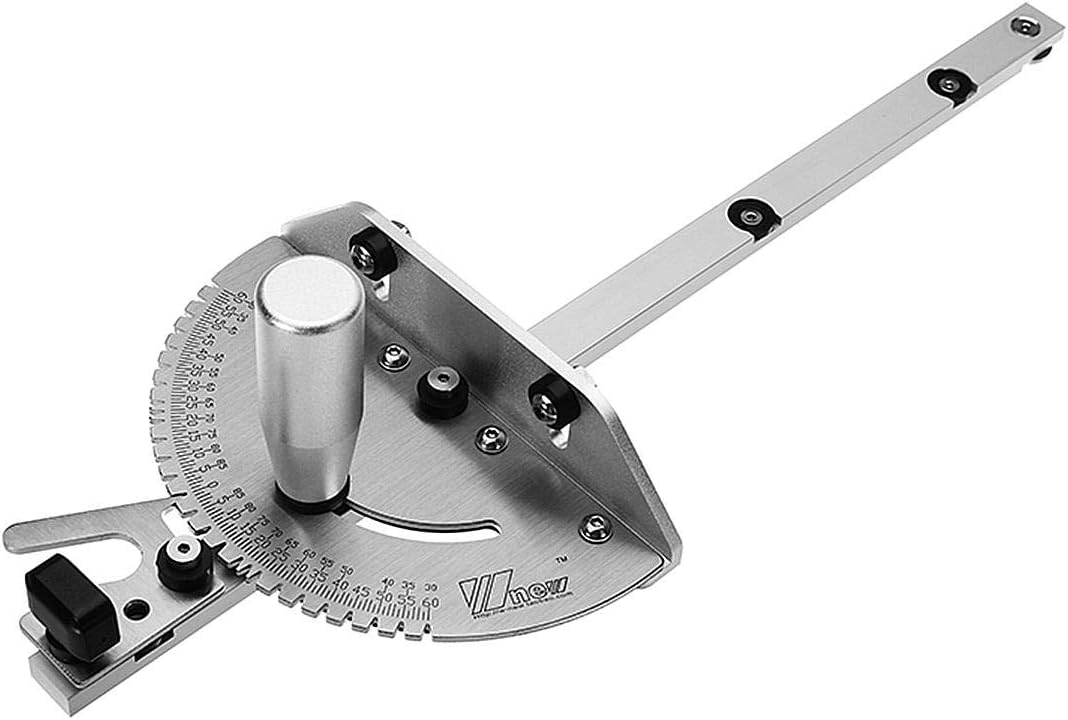

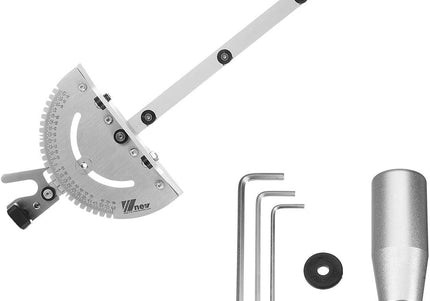

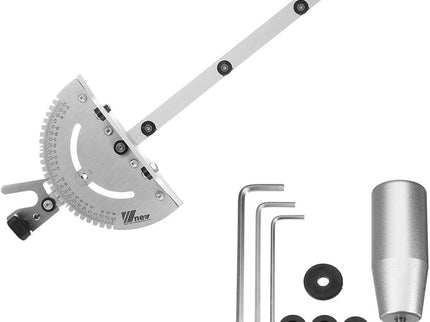

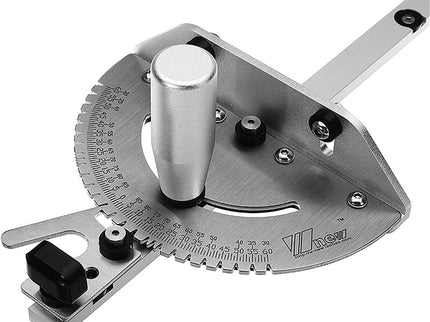

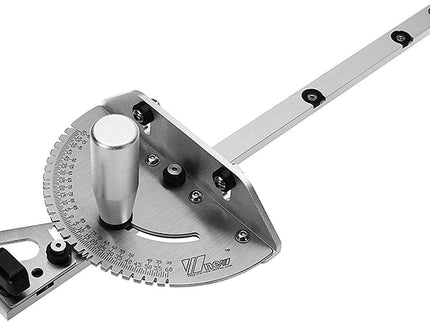

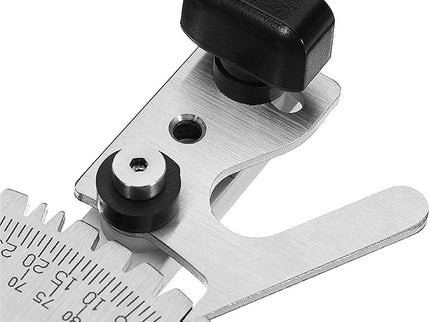

Precision Mitre Gauge for Mitre Track
$149.00
Description
This precision Miter Gauge improves accuracy and safety when cross cutting or mitering. The slide bar has a locking washer that fits snugly into an aluminum track with a matching groove.
The solid steel protractor head features positives stops at 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90° both left and right. 13 pre-set common angles in total.
The bar is 450mm long with a removable locking washer making it usable with any standard 19 x 9.5mm (3/4" x 3/8") Miter Track. Three spring loaded ball bearings keep the bar snug in the track allowing the fence to run true. The retaining rings on the end also allows smooth movement along the track.
Recommended for use on the T28 or T30 Mitre Track.
Note: Fence not included but fully compatible with the Heavy Duty or Standard Mitre T-Fence for Table Saw / Router Table.
