Description

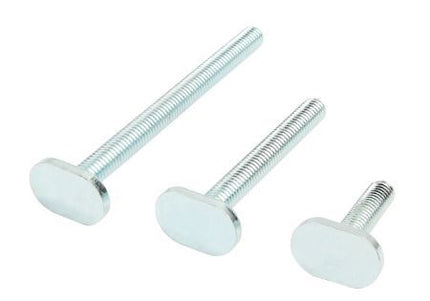

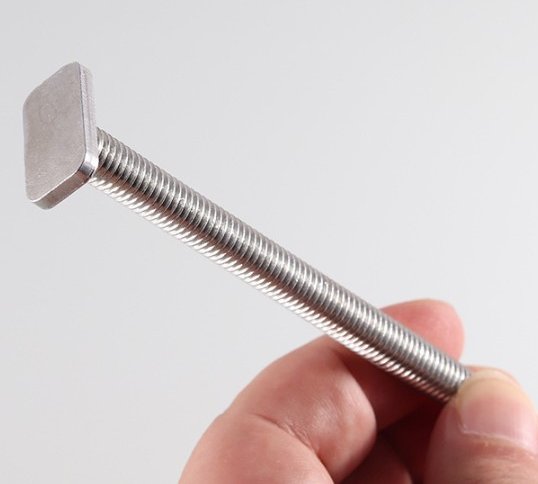

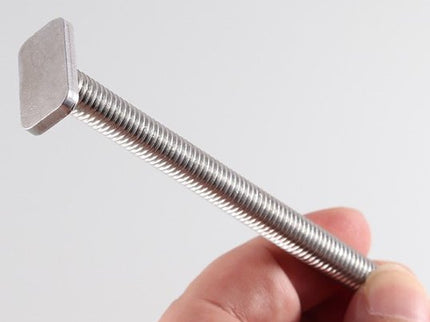

Build Custom Jigs using T-Slot bolts fitted to slide in Aluminum T-Track or milled T-Grooves.

The head of the T-Slot bolts are:

M6 x 25mm Length:  T-Head 10mm Width x 13mm for mini T-Track

M6 x 40mm Length:  T-Head 11mm Width x 14mm for mini T-Track

M6 x 45mm Length:  T-Head 12mm Width x 18mm for T19 T-Track

M8 x 75mm Length:  T-Head 12mm Width x 18mm for T19 T-Track

M8 x 25mm Length:  T-Head 12mm Width x 18mm for T19 T-Track

M8 x 50mm Length:  T-Head 12mm Width x 18mm for T19 T-Track

M8 x 75mm Length:  T-Head 12mm Width x 18mm for T19 T-Track

M8 x 100mm Length:  T-Head 12mm Width x 18mm for T19 T-Track
