Description

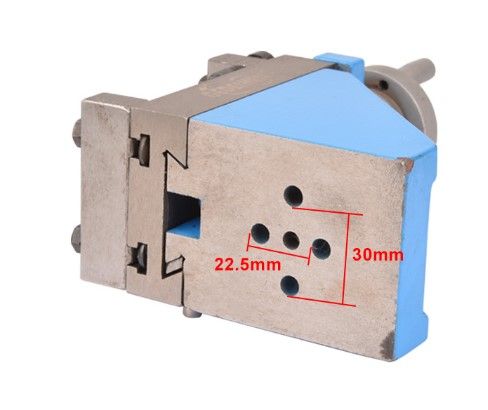

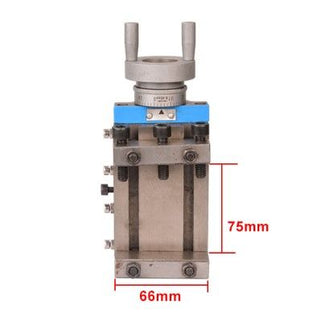

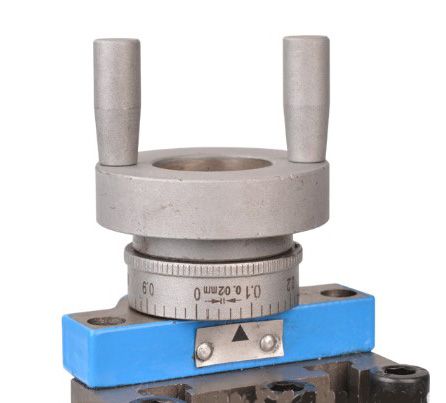

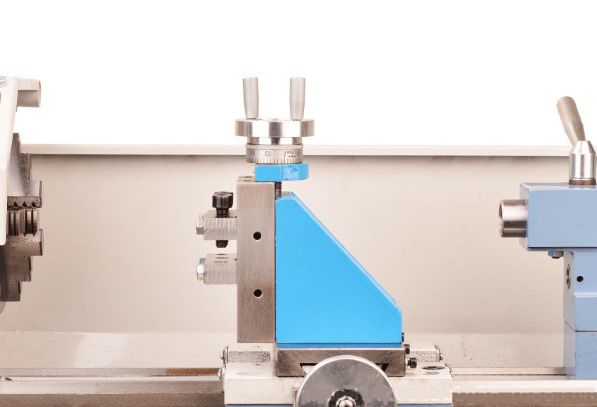

Vertical slide attachment designed for the 210V Series Lathe, enabling precision milling operations directly on your lathe. The integrated clamp system securely holds workpieces while milling cutters mount in the headstock, chuck, or collet holder for versatile machining. Engineered for accuracy to 0.02mm with a clamping range of 0–70mm and 60mm lifting stroke. Features a 50mm vertical travel, 110 x 65mm base, and 100 x 60mm sliding table with graduated dial for repeatable positioning. High-grade casting construction with smooth finish ensures durability and reliable performance. Compatible with bench lathes up to 150mm swing.

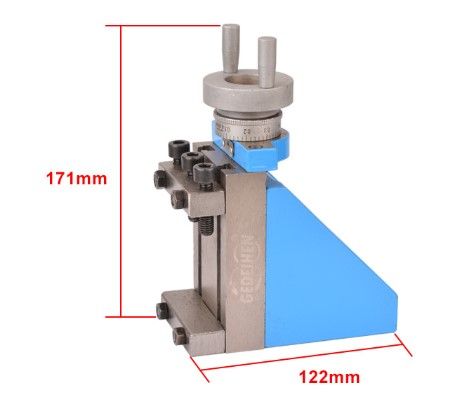

Compact dimensions of 66 x 122 x 171mm make it a practical addition to expand your lathe's capabilities for precision milling tasks.
Vertical Slide Attachment
$260.00
Description
Vertical slide attachment designed for the 210V Series Lathe, enabling precision milling operations directly on your lathe. The integrated clamp system securely holds workpieces while milling cutters mount in the headstock, chuck, or collet holder for versatile machining. Engineered for accuracy to 0.02mm with a clamping range of 0–70mm and 60mm lifting stroke. Features a 50mm vertical travel, 110 x 65mm base, and 100 x 60mm sliding table with graduated dial for repeatable positioning. High-grade casting construction with smooth finish ensures durability and reliable performance. Compatible with bench lathes up to 150mm swing.
Compact dimensions of 66 x 122 x 171mm make it a practical addition to expand your lathe's capabilities for precision milling tasks.
